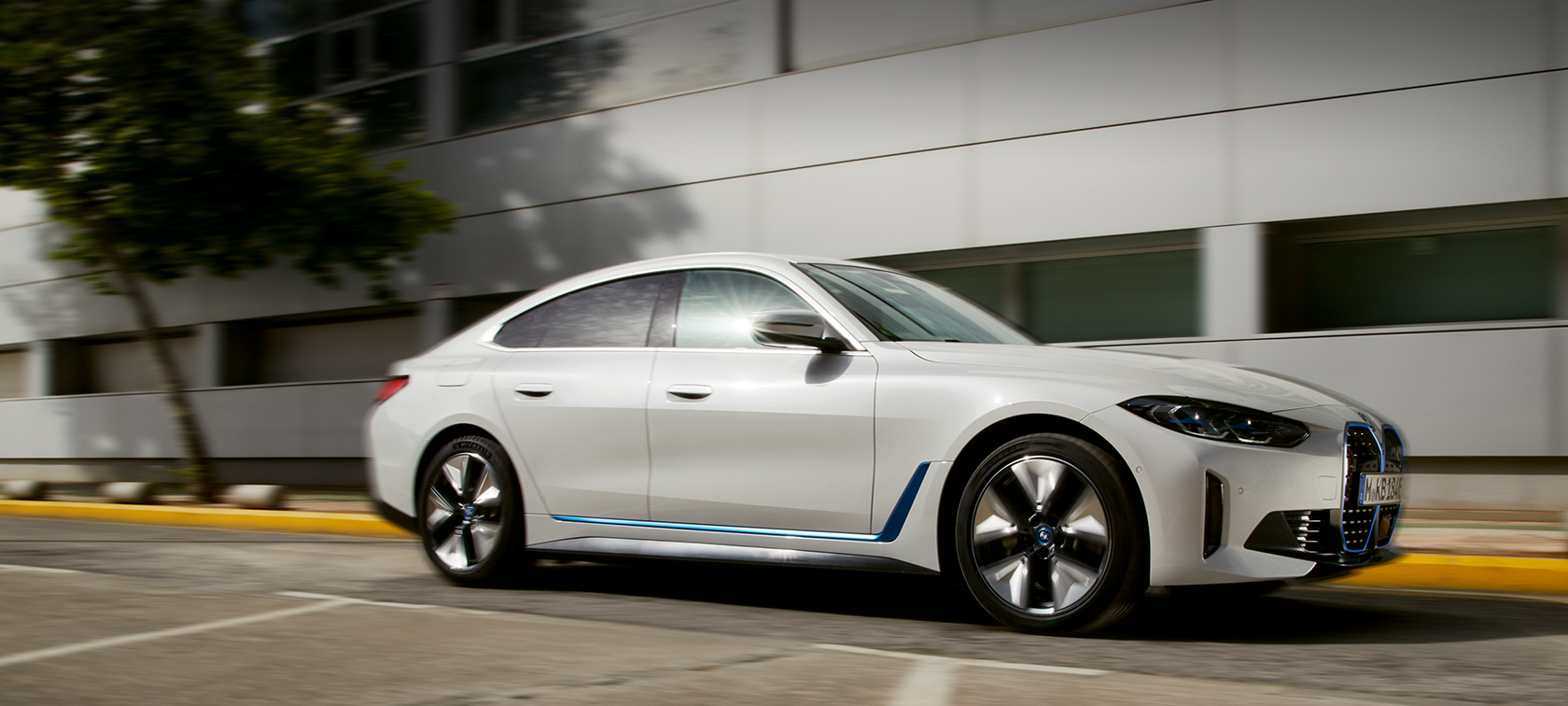

BMW i4 eDrive40 G26 2021 three-quarter side view driving in front of building

THE i4

BMW i4 eDrive40 G26 2021 three-quarter side view driving in front of building

THE BMW i4:
ENGINE & TECHNICAL DATA.

The key facts and figures on the BMW i4 at a glance: engine, energy consumption, electric range and dimensions. Check out all the performance data such as horsepower, torque and acceleration.

Read more
THE i4THE BMW i4: <br> ENGINE &amp; TECHNICAL DATA.
BMW i4
Find a BMW Dealer

TECHNICAL DATA OF THE BMW i4.

System Power

Powertrain type Electric
Power in Kw 210 (286)
Torque in Nm 400
Gearbox 1-speed, automatic
Drivetrain Rear-wheel drive

BMW eDrive

Continous power in kW (hp) 80 (109)
Nominal torque in Nm 400

Range Charging

Battery capacity in kWh 67

Performance

Maximum speed in km/h 190
Acceleration 0–100 km/h in s 6

Measurements

Length/Width/Height 4,783 / 1,852 / 1,448
Width incl. mirrors (driver / passenger side) in mm 2073 (1042 / 1031)
Wheelbase in mm 2,856 / 12.5
Ground clearance in mm 125

Weight

Curb weight in kg 2,065
Maximum weight in kg 2,545
Permitted load in kg 555
Permitted Axel load front/rear in kg 1,140 / 1,525
Allowed unbraked trailer load / drawbar load in kg 750 / 75
Luggage capacity in l 470 - 1290

Wheels

Tire front 225/55 R17 101 Y XL
Tire rear 225/55 R17 101 Y XL
Rim front 7,5Jx17 LM
Rim rear 7,5Jx17 LM

System Power

Powertrain type Electric
Power in Kw 250 (340)
Torque in Nm 430
Gearbox 1-speed, automatic
Drivetrain Rear-wheel drive

BMW eDrive

Continous power in kW (hp) 105 (143)
Nominal torque in Nm 430

Range Charging

Battery capacity in kWh 81.1

Performance

Maximum speed in km/h 190
Acceleration 0–100 km/h in s 5.7

Measurements

Length/Width/Height 4,783 / 1,852 / 1,448
Width incl. mirrors (driver / passenger side) in mm 2073 (1042 / 1031)
Wheelbase in mm 2,856 / 12.5
Ground clearance in mm 125

Weight

Curb weight in kg 2,125
Maximum weight in kg 2,605
Permitted load in kg 555
Permitted Axel load front/rear in kg 1,140 / 1,550
Allowed unbraked trailer load / drawbar load in kg 750 / 75
Luggage capacity in l 470 - 1290

Wheels

Tire front 245/35 R20 95 Y XL
Tire rear 255/35 R20 100 Y
Rim front 8,5Jx20 LM
Rim rear 9Jx20 LM

System Power

Powertrain type Electric
Power in Kw 400 (544)
Torque in Nm 795
Gearbox 1-speed, automatic
Drivetrain All-wheel drive

BMW eDrive

Continous power in kW (hp) 125 (170)
Nominal torque in Nm 795

Range Charging

Battery capacity in kWh 81.1

Performance

Maximum speed in km/h 225
Acceleration 0–100 km/h in s 3.9

Measurements

Length/Width/Height 4,783 / 1,852 / 1,448
Width incl. mirrors (driver / passenger side) in mm 2073 (1042 / 1031)
Wheelbase in mm 2,856 / 12.5
Ground clearance in mm 125

Weight

Curb weight in kg 2,290
Maximum weight in kg 2,735
Permitted load in kg 520
Permitted Axel load front/rear in kg 1,270 / 1,550
Allowed unbraked trailer load / drawbar load in kg 750 / 75
Luggage capacity in l 470 - 1290

Wheels

Tire front 245/45 R18 100 Y XL
Tire rear 255/45 R18 103 Y XL
Rim front 8,5Jx18 LM
Rim rear 9Jx18 LM

System Power

Powertrain type Electric
Gearbox 1-speed, automatic

Range Charging

Battery capacity in kWh 67

System Power

Powertrain type Electric
Gearbox 1-speed, automatic

Range Charging

Battery capacity in kWh 81.1

System Power

Powertrain type Electric
Gearbox 1-speed, automatic

Range Charging

Battery capacity in kWh 81.1
BMW wheels and tyres EU tyre label close-up

BMW WHEELS & TYRES.

We subject the tyres for our vehicles to stringent tests with up to 50 different quality criteria – significantly more than prescribed by the uniform tyre labelling regulation that applies throughout Europe. This is where you will find all the information on the properties of the tyres used at BMW.

* Electrical consumption and range is based upon the Combined Driving Test Cycle in accordance with ADR 81/02 on purpose built test vehicles and is provided for comparative purposes only. Actual range will vary in real world conditions depending on many factors including traffic conditions, driving habits, prevailing conditions and your vehicle’s equipment, condition and use.
